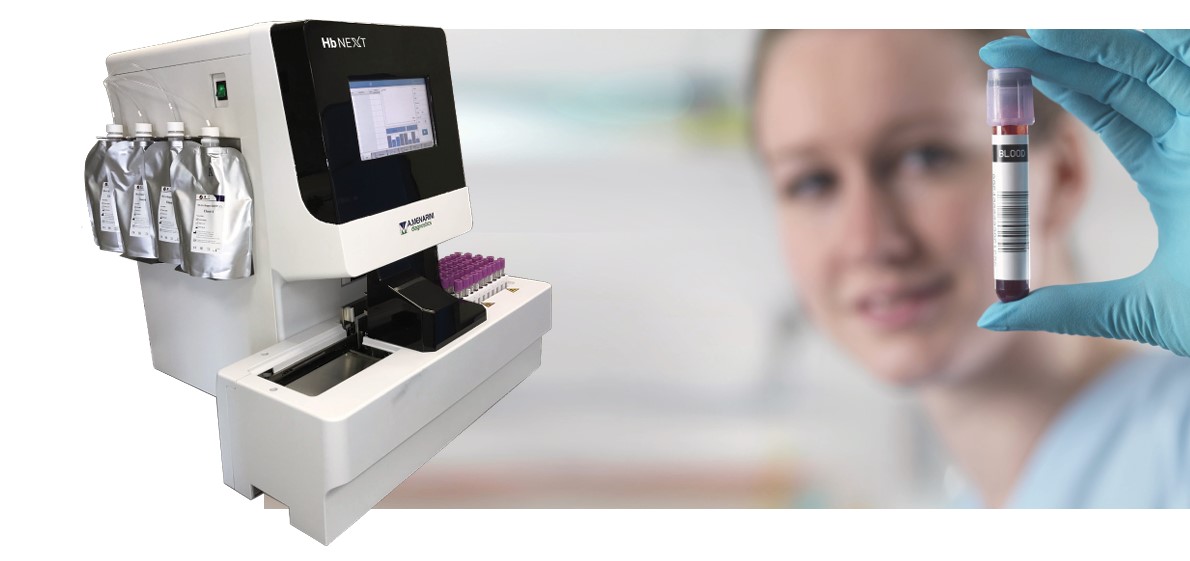

Fully automated HPLC hemoglobin analyzer

Efficiency and accuracy for quality patient care

A next generation HPLC solution ready to grow and evolve for your testing needs

Confidence in the results you deliver for rapid and reliable diabetes diagnosis and monitoring

The significance of HbA1c for long-term glycemic control monitoring has increased with the continuing rise in the number of people with diabetes.

From A.Menarini Diagnostics comes the latest model of glycohemoglo bin analyzers: Hb NEXT.

Hb NEXT is the new reversed-phase cation exchange HPLC analyzer de signed to deliver precise and accurate HbA1c values in the presence of he moglobin variants (HbE, HbD, HbS, and HbC) and to meet the most strin gent guidelines for diabetes diagnosis and monitoring.

The reliable results are traceable to the IFCC reference method.

This cutting-edge, fully automated system combines HPLC precision and variant detection with the rapid throughput your laboratory needs.

Hb NEXT offers high performance, user-friendly steps, and no sample preparation.

Most importantly, it delivers results clinicians can trust.

KEY FEATURES AND BENEFITS (VARIANT MODE) …WITH MORE TO COME

SUPERIOR HbA1c ACCURACY, RESULT RELIABILITY AND TRACEABILITY

  • HbA1c accuracy in the presence of hemoglobins E, D, S, C – no interference by variants
  • Standardized according to IFCC and transferable to DCCT/NGSP
  • Sample identification and reagent traceability via barcode scanning
  • Full compatibility between different lots of eluents and column

FULLY AUTOMATED AND HIGHLY EFFICIENT WORKFLOW

  • High processing speed: 60 sec/test
  • High column lifetime: at least 6000 tests
  • Minimized operator intervention
  • Closed tube sampling for maximum safety to the operator
  • Automatic sample stirring function
  • Easy-to-maintain

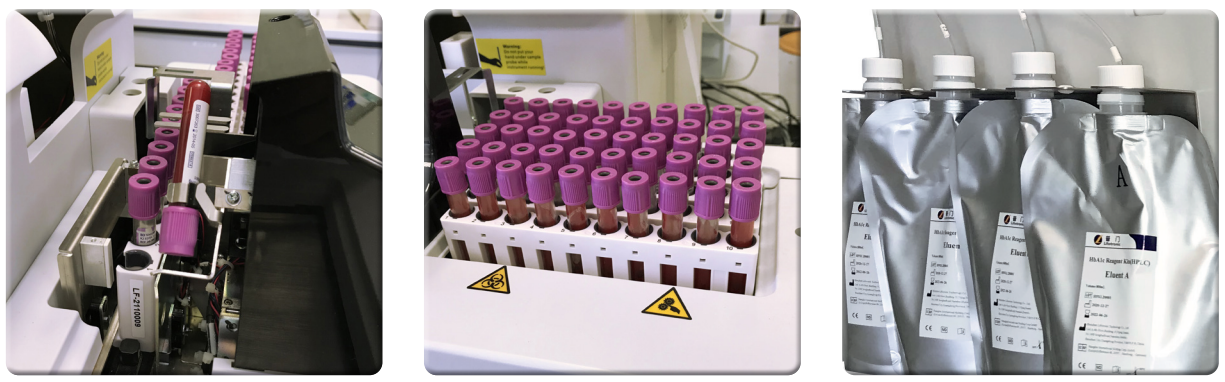

RACKS AND REAGENTS

Sample racks

  • Sample type (whole blood, anemic samples or pre-hemolysed samples) can be automatically recognized by the analyzer by using dedicated sample racks

Reagent containers

  • Two reagent containers are available for each eluent, to allow the substitution of the empty container without interrupting the measurement routine

Technical specifications (Variant mode)

Intended use: Quantification of stable glycated hemoglobin (HbA1c) in human whole blood in the presence of hemoglobin variants for the diagnosis and monitoring of diabetes mellitus
Samples: Human whole venous blood and pre-hemolysed samples
Measurement principle: Reversed-phase cation exchange chromatography
Measurement unit: Peak calibration and result calculated in SI units (mmol/mol) - Conversion to NGSP % value via IFCC master equation
Measurement resolution: 0.1 mmol/mol
Quantitative range: HbA1c: 9-195 mmol/mol, 3-20%
Processing speed: 60 seconds per sample
Throughput: 60 samples/hr
Warm-up timm: <5 minutes from standby
Minimum sample volume: 300 μL in standard whole blood containers
Sample consumption: Whole blood samples: 5μL
Sample container: Whole blood sample tube: (12-15 mm diameter) × (75-100 mm height) / With mixing function active: (12.3-13.2 mm diameter) × (75-85 mm height)
System operating environment: Temperature: 10-30 °C; humidity: 20-80% R.H. (no condensation)
Column lifetime: At least 6000 tests
Sample identification: Internal barcode reader
Sampler capacity: 50 samples + 1 STAT position
Display and printer: 10.1" TFT color LCD screen and thermal printer
Power supply and consumption analyzer: AC 100V~240V, 50-60 Hz, 250 VA
Dimensions: LxWxH 722x730x729 mm
Weight: 66 kg
Connectivity: LIS: RS-232, RJ45 Ethernet, bidirectional protocol

List of products and codes

55607 HbNEXT ANALYZER 1pcs
55604 HbNEXT ANALYTICAL COLUMN 1pcs
55599 HbNEXT ELUENT A 1 x 800 mL
55600 HbNEXT ELUENT B 1 x 800 mL
55601 HbNEXT ELUENT C 1 x 800 mL
55603 HbNEXT HAEMOLYSIS SOLUTION H 1 x 2500 mL
55606 HbNEXT HbA1c CALIBRATOR 2 x 0.1 mL
55605 HbNEXT HbA1c CONTROL 2 x 0.1 mL
