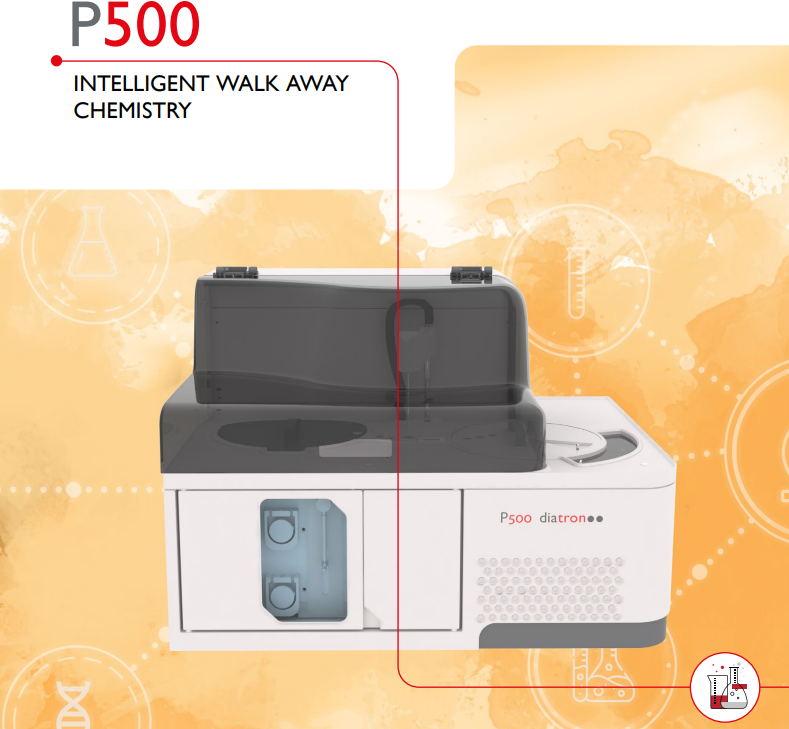

P500 Clinical chemistry analyzer

COST EFFECTIVE
Long on-board reagent stability with extensive linearities, low and high volume reagent kits, multi calibrators and controls

ONE FAMILY
The P500 belongs to State Of The Arts family of clinical chemistry systems. Within the family the instruments share common, barcoded reagents menu*, consumables, controls and calibrators. All fully validated

RELIABILITY & TRUST
Diatron manufactures high performance analysers with best available quality components

PRODUCTIVITY
Continuous sample and reagent loading with on board capacity of 95 samples (5 racks x 19 position) and up to 72 reagent vials + ISE

SPECIFICATIONS

THROUGHPUT*

• Up to 340 photometric tests/hour mono reagent
• Up to 180-240 ISE tests/hour with optional ISE unit
• Maximum combined throughput up to 480 tests/hour

ANALYSIS MODES

• Full and optimized Random access
• Sample or batch mode
• Real STAT
• Continuous reagents and samples loading

TEST PROFILES DEFINITION

• Automatic sample pre and post dilution (1:2 to 1:120)
• Automatic sample re-run
• Reflex testing

METHOD TYPES

• 1 point end point
• 2point end point
• Fixed time
• Kinetics
• Calculated
• With or w/o sample and reagent blank

CALIBRATION

• Automatic calibration
• Automatic curve fit
• Factor or standard
• Single and multipoint (unlimited)

CALIBRATION FORMULAS

• Linear
• Multilinear
• Polynomial
• Sigmoid
• Logit4
• Logit5
• Spline

PIPETTING ARM

• One pipetting arm for both sample and reagent, reaction pre-heater, probe collision sensor, reaction mixer and clot detector
• Probe cleaning - internal and external washing
• Stirring after each dispensing, programmable time
• 8 steps washing station

REACTION TRAY

• Reaction cuvette: 80 re-usable plastic 6 mm light path
• Reaction time: 0 to 25 min
• Reaction temperature: adjustable, default 37ºC ± 0.1ºC

OPTICS:

• Light source: Precision UV quartz halogen lamp
• Photometric Range: -0.1 to 3.6 A

MEASURING WAVELENGTH

• 340, 380, 405, 450, 490, 505, 550, 590, 620, 650, 700, 750 nm

PHOTOMETRY

• Single or Double-wavelength simultaneous reading

OPTIONAL ISE UNIT

• Medica ISE module: Na+, K+, Cl- and optional Li+ measurements
• Samples: serum, plasma or urine

DATA MANAGEMENT

• Import/export database
• Automatic backup procedure
• Windows-based software

INTERFACE LIS:

• Bi-directional RC 232 C, ASTM E 1381-95, ASTM E 1394-97

SAMPLES

• Sample volume 2 to 200 μl/test (in increments of 1ul)
• Sample tray of 95 positions (5 racks x 19 positions)
• Applicable sample tubes:
• primary tube length up to 100 mm
• pediatric vials
• 2 types of adaptors to accommodate variety of sample tubes and cups (ext. diameter 11.5 - 16mm)

REAGENTS

• Reagent cooling compartment of 72 cooled positions 8+/- 2oC
• 1 to 3 reagents, 5 to 480 μL in one step (in increments of 1 μL)
• Reagent bottle size 25mL, 45mL and 70 mL
• Min. reaction volume 180 μL
• Max. reaction volume 650 μL

BARCODE READER

• On-board samples and reagents barcode recognition

QUALITY CONTROL SYSTEM

• Levy-Jennings and Twin QC, Westgard multi-rules

PRINTOUT

• Customizable (Analysis result, work list, list of samples, Quality Control, Calibration curves, etc.)

WATER CONSUMPTION**

• ~1,5 L / hour

ENVIRONMENTAL CONDITIONS

• Transportation and storage:
• +5 to +35oC
• Humidity 10 to 80% noncondensing,
• Pressure 600 to 1050 hPa
• Operation:
• +18 to +30oC
• Humidity 40 to 80% noncondensing
• Pressure 600 to 1050 hPa

DIMENSIONS:

• 880mm(W) x 700mm(D) x 660mm
• Weight ~95 Kg

POWER REQUIREMENTS:

• 110/220V, 50/60 Hz, 600 VA

**Water consumption: up to 2L / h depending on the number of extra programmed washes
and number of batch runs
